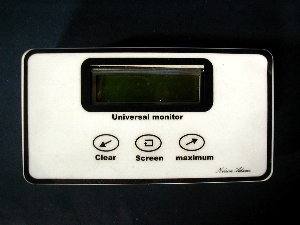

universal monitor

Indication/Features

Battery system voltage
Battery current- charging into or drawn from batteries.
Charge time
Discharge time
AC inverter voltage
AC generator voltage
AC inverter cycles (output frequency)
AC generator cycles (output frequency)
Maximum battery voltage
Maximum current
Generator start-up counter - how many times started
Inverter start-up counter - how many times started
Generator hour counter - total hours run to date
Inverter hour counter - same function as amp hour counter
Two line LCD display
Selectable shunt-type
Installation manual

With the latest microprocessor technology onboard, all important system parameters can be followed. With an easy three button interface lots of variables can be displaced.

Possible usage:

Generator speed adjustment - voltage and cycles
Battery monitor - volts, amps, charge and discharge rate time charged and amp hour counter.
Hour counter used to determine service generator
Faultfinding
Statistics how many hours the generator/inverter are used
Statistics how many hours of loading by wind generator or solar panels

The Universal monitor can be used in any alternative energy system. Even in systems with only generator, the frequency meter can be used to adjust the speed. The hour counter/ start-up counter a good indication about the use of a generator. These values are useful to determine if alternative energy could generate savings.

For more information about our products email: nelsonadams@telkomsa.net
